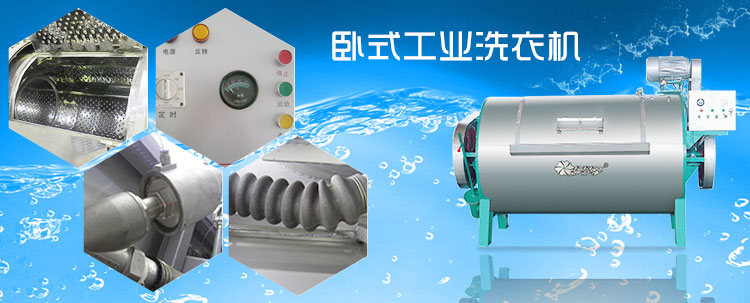

QXP系列臥式工業洗衣機

QXP系列臥式工業洗衣機

●QXP系列工業洗衣機在國內外同類產品技術的基礎上,研究開發的新一代洗滌機械,適用于洗滌各種棉絨、毛紡、麻類、化織混紡等衣物,對工礦、、賓館、等都具有廣泛用途,是選擇減輕勞動強度、提工作效率,降能耗的理想設備。
●用材精良,面板及內膽采用質不銹鋼制造,外缸墻板采用噴鋅處理,經久耐用,使用壽命長。
洗滌設備
功能點Feature and functions
●QXP系列工業洗衣機在國內外同類產品技術的基礎上,研究開發的新一代洗滌機械,適用于洗滌各種棉絨、毛紡、麻類、化織混紡等衣物,對工礦、、賓館、等都具有廣泛用途,是選擇減輕勞動強度、提工作效率,降能耗的理想設備。
●用材精良,面板及內膽采用質不銹鋼制造,外缸墻板采用噴鋅處理,經久耐用,使用壽命長。
●機械控制操作簡便,臥式設計,經濟實用。
●采用二皮帶傳動,傳動平穩,維護方便。

●QXP the series industry washer in the domestic and foreign similar products technology's foundation, the research
 development's new generation washes the machinery, is suitable in washes each kind of cotton velvet, the wool
spinning, the hemp, to melt weaves clothing and so on fabric blending, to the industry and mining, the school, the
 guesthouse, the medicine and so on has the widespread use, is the choice reduces the labor intensity, the enhancement
working efficiency, reduces the energy consumption the ideal equipment.
●Timber wood excellent, the kneading board and in the gallbladder uses the high quality stainless steel manufacture,
 outside the cylinder wall plate uses spurts zinc processing, durable, the service life is long.
●The mechanism control operation is simple, the horizontal type design, the economy is practical.
●Uses two level of belt transmissions, the transmission is steady, the service is convenient.

技術參數Technical parameters


型號 model
項目 item
單位
unit
QXP-30 QXP-50 QXP-70 QXP-100
洗滌容量 Washing capacity kg 30 50 70 100
滾籠尺寸 Cage size mm ¢660×1000 ¢850×1000 ¢920×1220 ¢980×1630
進水管徑 Into the water pipe diameter inch 1.5″ 2″ 2″ 2″
蒸汽管徑 Steam pipe diameter inch 0.75″ 1×1″ 2×1″ 2×1″
排水管徑 Diameters inch 2″ 3″ 3″ 4″
蒸汽壓力 Steam pressure MPA 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
電機功率 Motor power KW 1.5 3 4 4
額定電壓 Rated voltage V 380 380 380 380
外型尺寸 Dimension (L×W×H) mm 1860×
1160×1290
1880×
1300×1510
2120×
1360×1590
2260×
1500×1720
整機重量 Machine weight kg 387 595 595 912


型號 model

項目 item
單位unit QXP-150 QXP-200 QXP-250 QXP-300
洗滌容量 Washing capacity kg 150 200 250 300
滾籠尺寸 Cage size mm ¢1100×1800 ¢1210×2000 ¢1210×2200 ¢1310×2200
進水管徑 Into the water pipe diameter inch 2″ 2″×2″ 2″×2″ 2″×3″
蒸汽管徑 Steam pipe diameter inch 2×1″ 2×1″ 2×1″ 2×1″
排水管徑 Diameters inch 2×4″ 2×4″ 2×4″ 2×4″
蒸汽壓力 Steam pressure MPA 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
電機功率 Motor power KW 5.5 7.5 7.5 7.5
額定電壓 Rated voltage V 380 380 380 380
外型尺寸 Dimension (L×W×H) mm 2820×1700×1800 3050×190x
1600
3250×1900×1600 3250×1900×2050
整機重量 Machine weight kg 1232 1716 1774 2050
