功能點Feature and functions

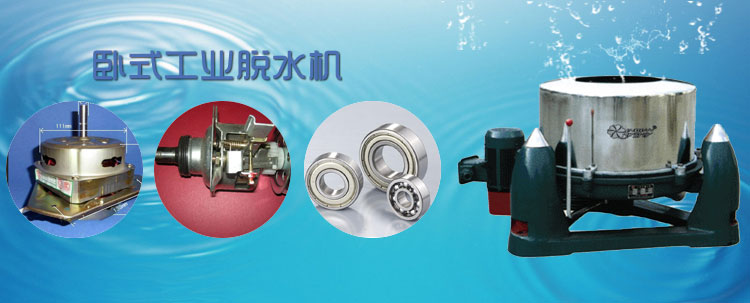

●本產品與工業洗衣機配套使用，亦可用于化工，醫藥工業產品脫水，本機采用三點懸掛結構，
震動小，運行安可靠，主要部件均采用不銹鋼制作。
●This product and the industry washer necessary use, may also use in chemical, the pharmaceutical industry product
dehydration, this aircraft use the three point suspension structure, the vibration are small, the movement safe reliable,
the major component uses the stainless steel manufacture.
●本產品與工業洗衣機配套使用，亦可用于化工，醫藥工業產品脫水，本機采用三點懸掛結構，
震動小，運行安可靠，主要部件均采用不銹鋼制作。
●This product and the industry washer necessary use, may also use in chemical, the pharmaceutical industry product
dehydration, this aircraft use the three point suspension structure, the vibration are small, the movement safe reliable,
the major component uses the stainless steel manufacture.
技術參數Technical parameters
|
型號 model 項目 item |
QLQT--25 | QLQT--35 | QLQT--50 | QLQT--70 | QLQT--100 | QLQT--120 | |
| 脫水容量Dehydration capacity(kg) | 25 | 35 | 50 | 70 | 100 | 120 | |
| 脫水轉速Dehydration speed rpm | 850 | 830 | 786 | 780 | 786 | 680 | |
| 脫水率Dry removal rate | 50 | 50 | 50 | 50 | 50 | 50 | |
| 重量Weight（kg） | 350 | 400 | 900 | 1200 | 1500 | 1800 | |
| 內簡尺寸 brief dimensions within（XH） | 570×310 | 640×330 | 850×370 | 950×400 | 1000×400 | 1000×500 | |
| 外型（長×寬×）Dimension(L×W×H)mm |
860* 860* 160 |
950* 950* 700 |
1100* 1150* 850 |
1350* 1450* 850 |
1500* 1600* 900 |
1750* 1750* 900 |
|
|
電動機 額參數 |
電機功率Motor power(KW) | 1.1 | 1.5 | 4 | 5.5 | 7.5 | 9 |
| 電壓Voltage（V） | 380 | 380 | 380 | 380 | 380 | 380 | |
| 頻率Frequency（HZ） | 50 | 50 | 50 | 50 | 50 | 50 | |
| 轉速Speed（r/m） | 1400 | 1420 | 1400 | 1440 | 1400 | 1400 | |
