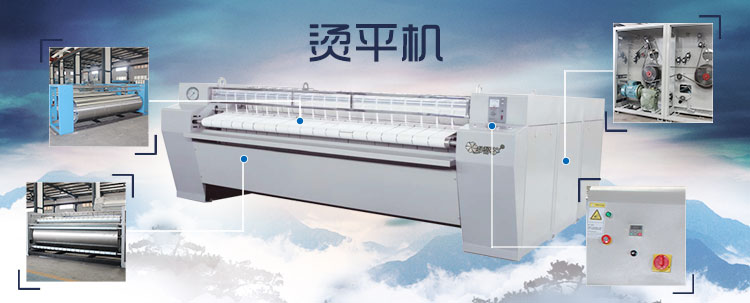

YPTPYYI三滾燙平機系列

YPTPYYI三滾燙平機系列

●三滾燙平機系列采用蒸汽加熱,傳動采用變頻調速, 根據加熱溫度和織物厚度隨意調節速度。
●在輥筒采用質不銹鋼制造,表面經過磨削加工處理使用織物磨損降到。
●運行可靠,采用減速器聯接皮帶輪及鏈輪傳動,并配置傳動漲緊機構,運行速度。
●副輥采用噴鋅處理,搞腐蝕能力強,經久耐用。
洗滌設備
功能點Feature and functions
●三滾燙平機系列采用蒸汽加熱,傳動采用變頻調速, 根據加熱溫度和織物厚度隨意調節速度。
●在輥筒采用質不銹鋼制造,表面經過磨削加工處理使用織物磨損降到。
●運行可靠,采用減速器聯接皮帶輪及鏈輪傳動,并配置傳動漲緊機構,運行速度。
●副輥采用噴鋅處理,搞腐蝕能力強,經久耐用。
●Three rolls irons out machine uses the steam heating, the transmission uses the frequency conversion velocity modulation, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the high quality stainless steel manufacture, the surface reduces lowly to after the abrasive machining processing use fabric attrition.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission to rise the tight organization, the guarantee running rate.
●All vice-rollers use spurt zinc processing, does corrosion ability, durable.

技術參數Technical parameters



型號 model



項目 item
TYZⅡ
2500
TYZⅡ2800 TYZⅡ
3000
TYZⅡ
3300
熨平寬(mm) Biggest ironing width 2500 2800 3000 3300
熨平速度(m/min) Ironing speed 3-20 3-20 3-20 3-20
加熱溫度(℃) Highest heating temperature 158 158 158 158
蒸汽壓力(MPA) Steam pressure 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
蒸汽耗量(kg/h) Steam consumption 300 350 380 400
電機功率(KW) Motor power 2.2 2.2 2.2 2.2
額定電壓(V) Rated voltage 380 380 380 380
外形(長×寬×)(mm) Dimension
(L×W×H)
3700×
3100×
1385
4000×
3100×
1385
4200×
3100×
1385
4400×
3100×
1385
整機重量(kg) Machine weight 3300 3500 3800 4000
